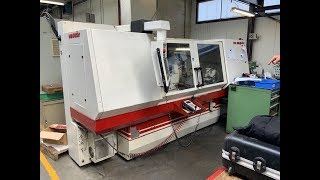

Studer S 40 CNC belt grinding machine
Brügg6903 km to "United States/Columbus"
If you decide to buy equipment at a low price, make sure that you communicate with the real seller. Find out as much information about the owner of the equipment as possible. One way of cheating is to represent yourself as a real company. In case of suspicion, inform us about this for additional control, through the feedback form.
Before you decide to make a purchase, carefully review several sales offers to understand the average cost of your chosen equipment. If the price of the offer you like is much lower than similar offers, think about it. A significant price difference may indicate hidden defects or an attempt by the seller to commit fraudulent acts.
Do not buy products which price is too different from the average price for similar equipment.
Do not give consent to dubious pledges and prepaid goods. In case of doubt, do not be afraid to clarify details, ask for additional photographs and documents for equipment, check the authenticity of documents, ask questions.
The most common type of fraud. Unfair sellers may request a certain amount of advance payment to “book” your right to purchase equipment. Thus, fraudsters can collect a large amount and disappear, no longer get in touch.
- Transfer of prepayment to the card
- Do not make an advance payment without paperwork confirming the process of transferring money, if during the communication the seller is in doubt.
- Transfer to the “Trustee” account
- Such a request should be alarming, most likely you are communicating with a fraudster.
- Transfer to a company account with a similar name
- Be careful, fraudsters may disguise themselves as well-known companies, making minor changes to the name. Do not transfer funds if the company name is in doubt.
- Substitution of own details in the invoice of a real company
- Before making a transfer, make sure that the specified details are correct, and whether they relate to the specified company.
Seller's contacts
+41 32 373 ...
Show
+41 32 373 34 44
+41 79 758 ...
Show
+41 79 758 03 25
Switzerland
Distance between centres 1000 mm
Workpiece weight on centres max. 130 kg
Workpiece dimensions:
Grinding weehl left side:
Diameter 400 mm
Width 80 mm
Bore 1 7 mm
Grinding wheel right side:
Diameter 400 mm
Width 80 mm
Bore 1 7 mm
B axis resolution max. 5 °
B axis swivelling range (automatic) 15° + 05 °
Grinding wheel speeds:
number (steps)
up to 1670 / 110 rpm
Peripheral speed 35 m/s
Rotatable grinding spindle head (b-axis) 5 °
Revolving unit with Hirth serration
Longitudinal slide:
Max. travel 1050 mm
Resolution 0.0001 mm
Feed speed up 0.0001 - 10000 mm/min
Transversal slide:
Max. travel 75 mm
Resolution 0.0001 mm
Feed speed up 0.0001 - 10000 mm/min
Work piece spindle head:
speeds:
from 30 rpm
up to 750 rpm
rotatable 90 °
taper in spindle: MT 5
Required power 0.785 kW
Tailstock:
Hydraulic return
Taper in tailstock: 3 MT
Tailstock travel of barrel 35 mm
Max. table angular displacement 8.5 °
Air connect 5 bar
Voltage 50 Hz 3x 400 Volt
Workpiece spindle motor 7.5 kW
Total power required 30 kVA
Machine's weight about 5100 kg
Overall dimensions machine:
Length 3750 mm
Width 1 00 mm
Height 300 mm
Various accessories:
Internal grinding attachment:
Number of spindles 1
up to 60000 rpm
Lamp
Tailstock with fine adjustement
Electronic hand held control
Controller: GE FANUC Series 16-GC
